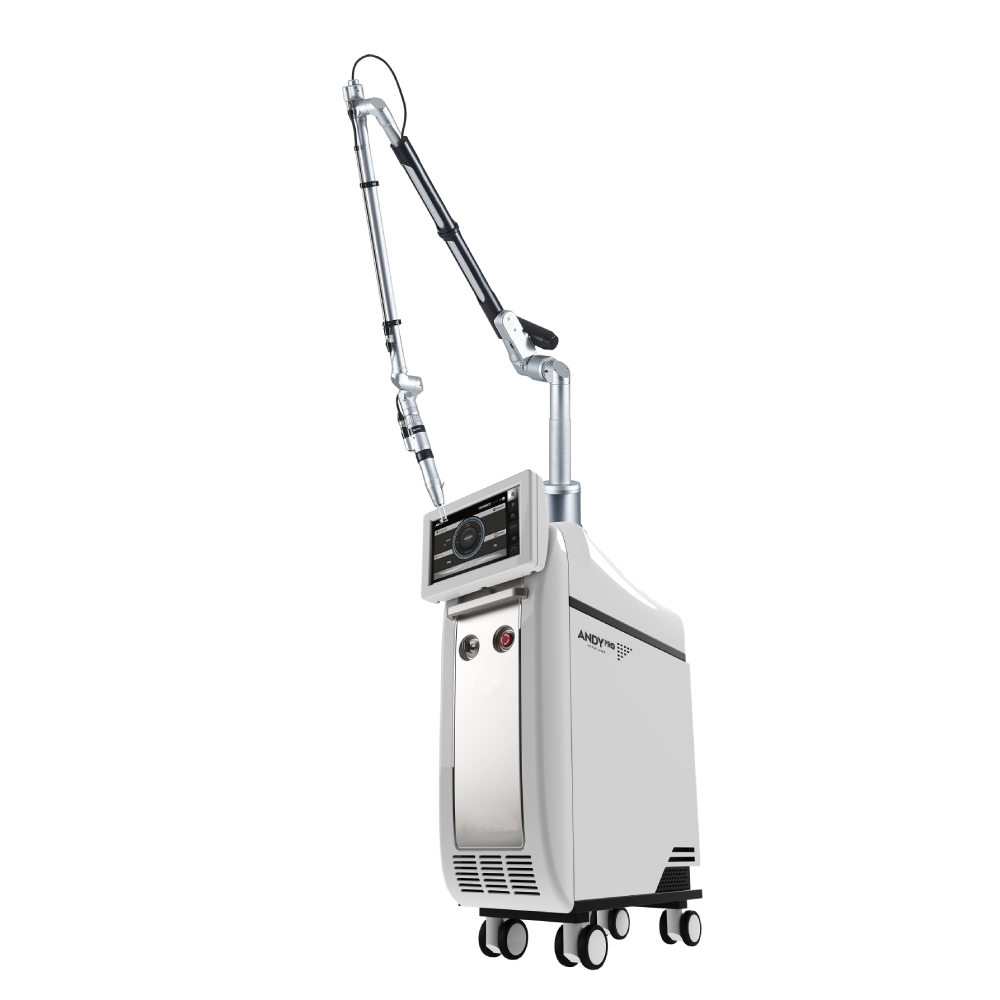

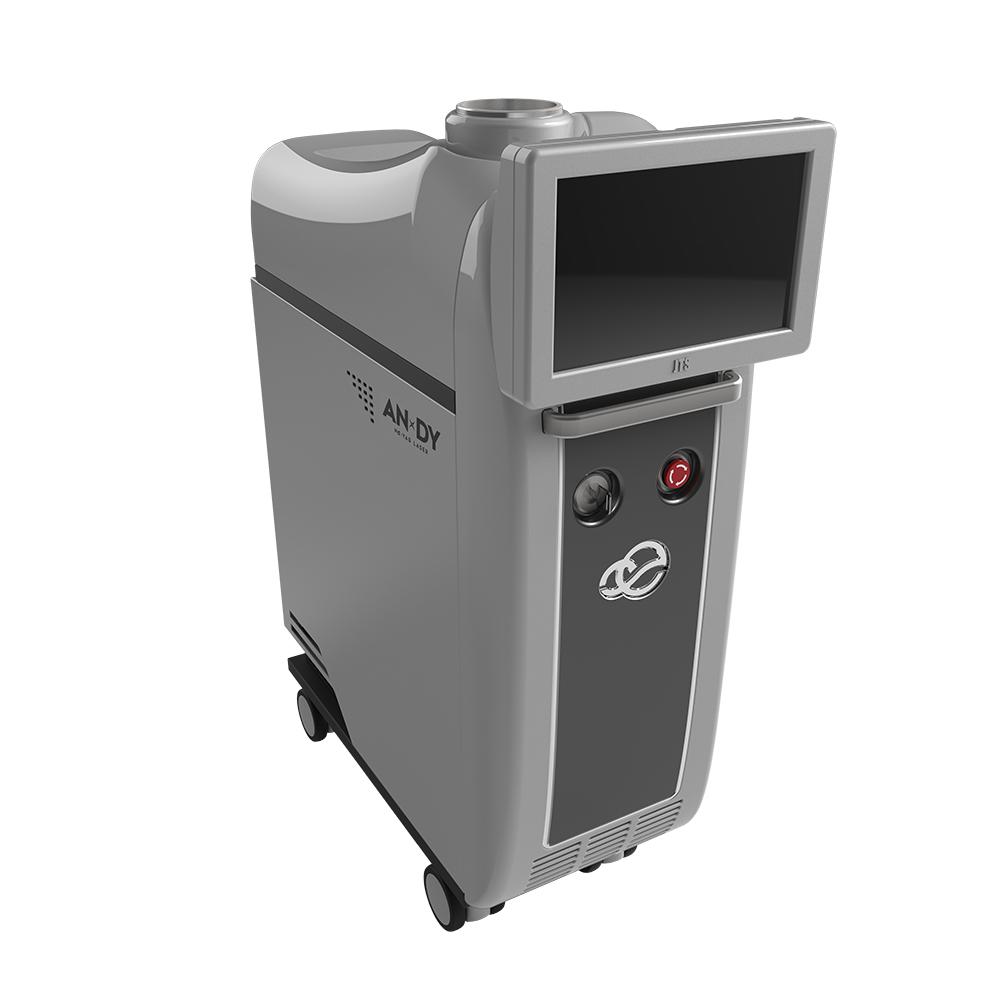

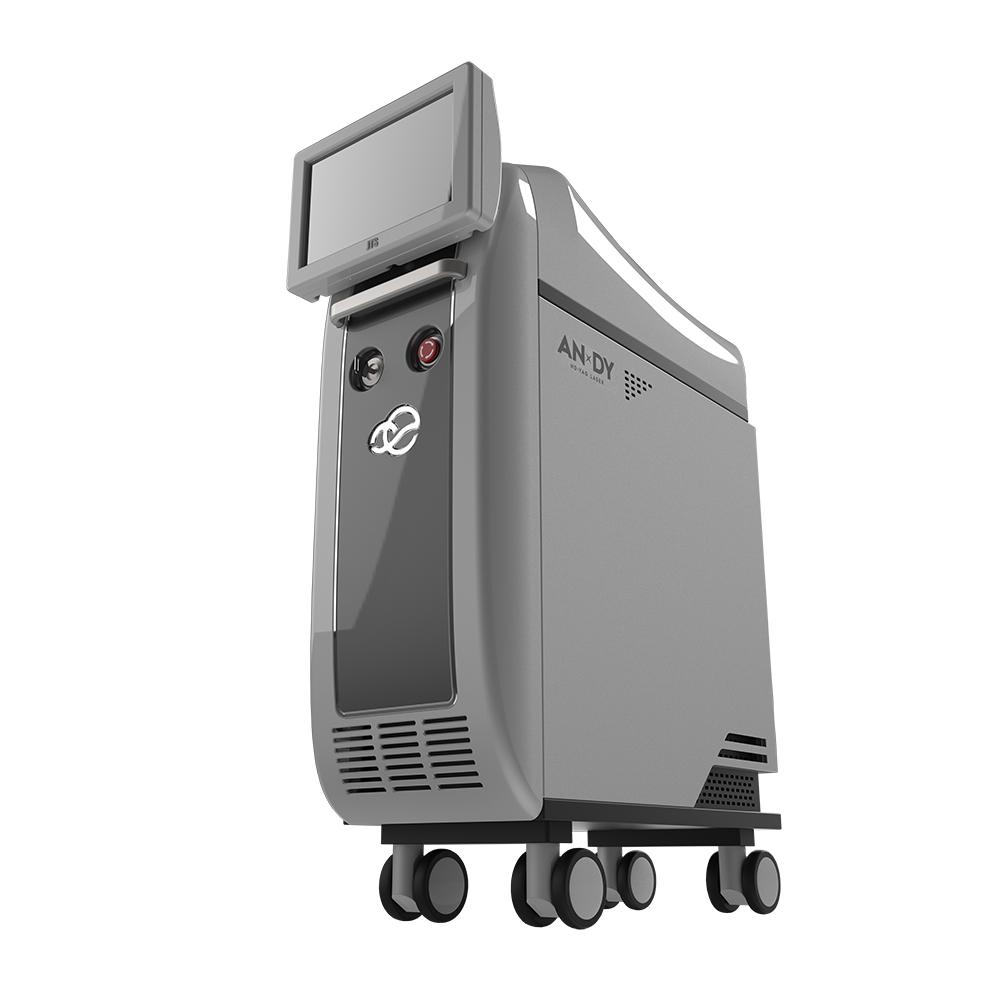

Andy Nd:Yag Q-Switched Laser
KTP is a nonlinear optical material which is commonly used for frequency doubling diode-pumped solid-state lasers such as Nd:YAG and other neodymium-doped lasers. Dual chamber of dual rod supports high speed and high power of Andy.
Andy Toning Mode
After first pulse is radiated on the skin, twin pulse is radiated within 100us of short interval and it increases effecive of photo thermal effect and breaks melasma safely
Multi Toning Mode
Multi Toning mode can divide a single pulse with strong peak power into 4 pulses. It is suitable for sensitive skin and young skin with freckles and is the most optimized pulse mode for laser toning.
Long-Peel Mode
After the first pulse is radiated on the skin, twin pulses are radiated within 100us of short intervals, increasing the effective photothermal effect and safely breaking melasma.

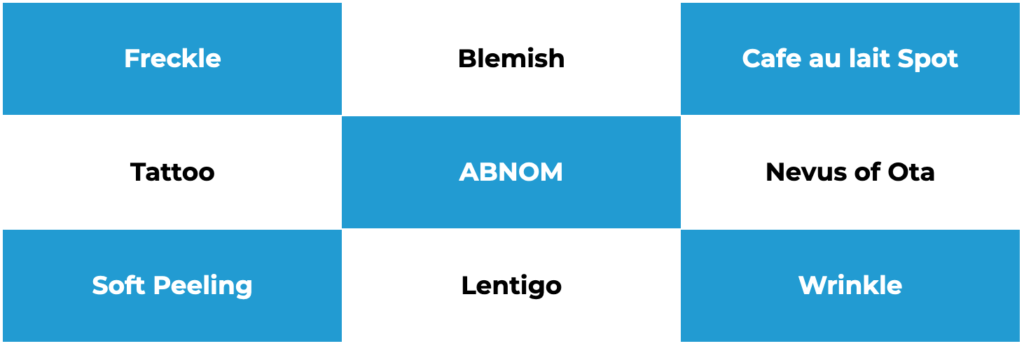

Indication
- The improvement in skin texture and tone
- The new generation of tattoo removal
- PIH and Mild treatment of pigmentation
- To get the better skin texture and tone
Stable Power System
Simple Power Supply
The power supply has a simple design. and a layout capable of maximizing the efficiency. It is designed with stability first.
High-precision, stable power supply
Designed with high precision, Energy can be adjusted with precise values.
Self-Testable Power Supply
Self-tests can be run internally. There us also the ability to detect and removal from errors internally.
High pulse repetition rate
This equipment provides a high pulse repetition rate. There available pulse repetition rate is up to 15z, It may give advantage in the treatment of melasma.
Stable 532nm
Oven Type 45 ~ 55°C Controller
Handpieces

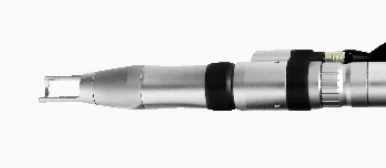

Zoom [2-100mm]
2~10 mm size handpiece is available in zoom handpiece. the sensor recognize the spot size and the full 10.2 inch monitor shows the spot size and alarm if the spot size is set as different size.

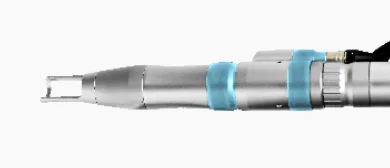

Collimated [7mm]
7mm size of handpiece can help treatment of toning easily and accurately. With special optics in-side of handpiece, energy loss is decreased and more focus laser energy on target area even though the laser handpiece is not contacted on the face tightly.

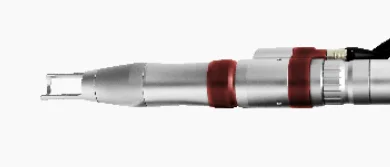

Optional Handpiece
1064nm Fractional [7x7mm]
There are two types of 1064 fractional, DOE and MLA. DOE have 49 holes, 7 horizontally and 7 vertically. Overall size is 5 by 5.
532nm Fractional [4x4mm]
The 532 fractional uses DOE only. DOE has 81 holes, 9 horizontally and 9 vertically. Overall size is 4 by 4.
595nm DYE [4.5mm]
Up to Max 200mJ. Post-acne redness, Facial flushing lesions can be treated.
660nm DYE [4.5mm]
Up to Max 150m.J. Freckles other epidermal pigmentations lesions can be treated.
Nd:YAG LASER for Tattoo Removal & Pigment Lesion
The Nd:YAG laser is one of the solid-state lasers that use Nd:YAG (Neodymium-doped aluminum
garnet) crystal as its energy medium and radiates at the wavelengths of 1064nm and 532nm
Q-switch is a technique that enables the laser to generate high-energy pulses (mega watts) in an
extremely short time (nano-seconds). KTP isa nonlinear optical material commonly used for frequency
-daubling diode-pumped solid-state lasers, such as Nd:YAG and other neodymium-daped lasers.
The dual-chamber of dual-rod configuration supports the high speed and high power of the ANDY.
1064 & 532 Pulse mode of ANDY
1064
With short duration, in this mode ANDY can support high power in a moment, it breaks melanic pigment from deep dermis to epidermis thoroully.
532
532nm wave length is shorted than 1064nm and its penetration depth area is superficial epidermis area. Q522 mode treat epidermal pigment lesions effectively.
Relative Intensity & Scatter Angle
SPECIFICATION
| Specification | Details |
|---|---|
| Laser Medium | Nd:YAG Crystal |
| Wavelength | 1064nm / 532nm |
| Operating Mode |
1064nm/532nm Andy Toning (PTP) Multi Toning (4 Pulse) Long-Peel (FR) |
| Beam Profile | JTS Top Mode |
| Pulse Energy |
Max. 1600mJ [1064nm] Max. 1600mJ [Andy Toning (PTP)] Max. 160mJ [Multi Toning (4 Pulse)] Max. 500mJ [532nm] Max. 200mJ [Long-Peel (FR)] |
| Pulse Rate | 1~15Hz |
| Cooling System | Closed cycle water to air heat exchanger |
| Pulse Width |
5ns~10ns [1064nm] 5ns~10ns [Andy Toning (PTP)] 5ns~10ns [Multi Toning (4 Pulse)] 5ns~10ns [532nm] 300us [Long-Peel (FR)] |
| Power Input | 220-230VAC, 3VA |
| Dimensions | (W) 600mm x (H) 850mm x (D) 770mm |
| Weight | 65kg |
Handpieces
